SKU: ESL-EMG-BOX1-EXT-8W
EMG Box1 • 8W / Box Wet Rated / Bronze
Wattage: 8 WattsDimensions: L9.21" x W3.62" x H3.27" -
SKU: ESL-EMG-SL6-CSC-8W
EMG SL6 • 8W / Closed Single Conduit
Wattage: 8 WattsDimensions: L13.58" x W1.5" x H0.98"Default Accessories: Face Plate -
SKU: ESL-EMG-SL6-CSC-18W
EMG SL6 • 18W / Closed Single Conduit
Wattage: 18 WattsDimensions: L13.58" x W1.5" x H0.98"Default Accessories: Face Plate -
SKU: ESL-EMG-SL6-CSC-40W
EMG SL6 • 40W / Closed Single Conduit
Dimensions: L17.24" x W11.42" x H10.04" -
SKU: ESL-EMG-SL6-CSC-40W-HV
EMG SL6 • 40W / Closed Single Conduit / HV
Dimensions: L17.24" x W11.42" x H10.04" -
-
-
SKU: ESL-EMG-SL6-OTB-18W
EMG SL6 • 18W / Open Terminal Wiring
Dimensions: L17.24" x W11.42" x H10.04" -
SKU: ESL-EMG-HB2-CWR-25W
EMG HB2 • 25W / Closed Wet Rated
Wattage: 25 WattsDimensions: L5.47" x W5.47" x H6.81"Default Accessories: ESL-EMG-HB2-CONNECT-RODM10;ESL-ACCS-LOOP-M10;ESL-ACCS-HOOK-M10;ESL-ASMB-GLAND-PG11 -
-
SKU: ESL-DMG3-150W-OPMA-56-4200
Driver • DMG3 / 150W / Outdoor Fixtures
Dimensions: L8.7" x W2.68" x H1.57"Power Supply: ACHumidity Max: 20–95% RHCompliance: UL8750, UL1012, EN61347-1, EN61347-2-13, EN60598-1, EN62384Storage Temperature: -40°F to 185°F (-40°C to 85°C) -
SKU: ESL-DMG3-150W-HV-OPMA-56-4200
Driver HV • DMG / 150W / High Voltage
Dimensions: L8.7" x W2.68" x H1.57"Power Supply: ACHumidity Max: 20–95% RHCompliance: UL8750, UL1012, EN61347-1, EN61347-2-13, EN60598-1, EN62384Storage Temperature: -40°F to 185°F (-40°C to 85°C) -
SKU: ESL-DMG3-320W-OPMA-56-8400
Driver • DMG / 320W / Outdoor
Dimensions: L9.88" x W3.54" x H1.73"Power Supply: ACHumidity Max: 20–95% RHCompliance: UL8750, UL1012, EN61347-1, EN61347-2-13, EN60598-1, EN62384Storage Temperature: -40°F to 185°F (-40°C to 85°C) -
SKU: ESL-DMG3-320W-HV-OPMA-56-8400
Driver HV • DMG / 320W / High Voltage
Dimensions: L9.88" x W3.54" x H1.73"Power Supply: ACHumidity Max: 20–95% RHCompliance: UL8750, UL1012, EN61347-1, EN61347-2-13, EN60598-1, EN62384Storage Temperature: -40°F to 185°F (-40°C to 85°C) -
SKU: ESL-ISS-SSEN-01
SoloSense™ Indoor PIR/Daylight Harvesting Sensor • Plug & Play / IP20
Dimensions: L2.44" x W0.98" x H0.83"Sensor Detection Range: 32 Feet MaxSensor Detection Radius: 360°Dimming Control Output: Class 2, 0–10 VDC, 10mA MaxPower Supply: 12 VDCMounting Height: 15 Feet MaxHousing Material: UL 94-5VA PlasticLocation of Use: IndoorBluetooth Transmit Range: No BluetoothCompliance: UL8750Storage Temperature: -22°F to 185°F -
SKU: ESL-ISS-MSEN-01
MultiSense™ Indoor PIR/Daylight Harvesting Sensor • Plug & Play / IP 20
Dimensions: L2.44" x W0.98" x H0.83"Sensor Detection Range: 40 Feet MaxSensor Detection Radius: 360°Dimming Control Output: Class 2, 0–10 VDC, 10mA MaxPower Supply: 12 VDCMounting Height: 18 Feet MaxHousing Material: UL 94-5VA PlasticLocation of Use: IndoorBluetooth Transmit Range: 100 Feet MaxRadio Frequency: 2.4GHz ± 75MHzBluetooth Version: 4.2Compliance: UL8750Storage Temperature: -22°F to 185°F -
SKU: ESL-ISS-MSEN-03
MultiSense™ High Bay PIR/Daylight Harvesting Sensor • 3.5mm Audio Jack / IP 41
Dimensions: Ø2.28" x H2.6"Sensor Detection Range: 40–80 Feet MaxSensor Detection Radius: 360°Dimming Control Output: Class 2, 0–10 VDC, 10mA MaxPower Supply: 12 VDCMounting Height: 20–40 FeetHousing Material: UL 94-5VA PlasticLocation of Use: Indoor/Outdoor UseBluetooth Transmit Range: 100 Feet MaxRadio Frequency: 2.4GHz ± 75MHzBluetooth Version: 4.2Compliance: UL8750Storage Temperature: -22°F to 185°F -
SKU: ESL-ISS-SSEN-03
SoloSense™ High Bay PIR/Daylight Harvesting Sensor • 3.5mm Audio Jack / IP 40
Dimensions: Ø2.28" x H2.6"Sensor Detection Range: 32 Feet MaxSensor Detection Radius: 360°Dimming Control Output: Class 2, 0–10 VDC, 10mA MaxPower Supply: 12 VDCMounting Height: 20–40 FeetRemote Range: Max 26 ft (IR)Housing Material: UL 94-5VA PlasticLocation of Use: Indoor/Outdoor UseBluetooth Transmit Range: No BluetoothCompliance: UL8750Storage Temperature: -22°F to 185°F -
SKU: ESL-OCCP-LV-01
OCCP • Stand Alone PIR Occupancy Sensor / Wet Rated
Dimensions: Ø2.13" x H1.85"Sensor Detection Range: 26 ft. @ 40ft.Sensor Detection Radius: 360°Dimming Control Output: 0–10V Max, 25mA Sinking CurrentPower Supply: 12–24VDCMounting Height: 40 ft. MaxRemote Range: up to 50ftHousing Material: PlasticHumidity Max: Max 95% RHLocation of Use: OutdoorBluetooth Transmit Range: No BluetoothRadio Frequency: PIR infrared, No frequencies are used -
SKU: ESL-OCCP-LV-02

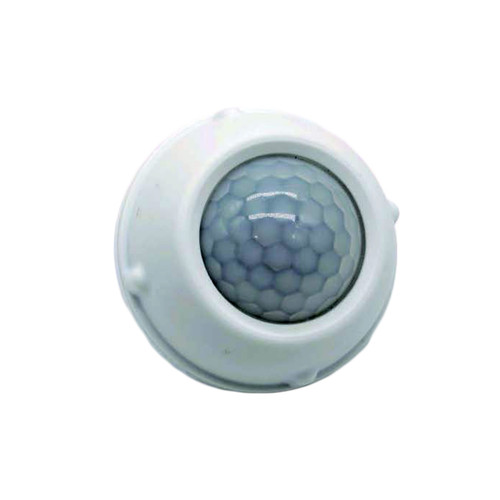

OCCP • Stand Alone PIR Occupancy Sensor / Low Voltage
Finish: WH (White)Dimensions: Ø2.13" x H10.43"Sensor Detection Range: 26 ft. @ 40ft.Sensor Detection Radius: 360°Dimming Control Output: 0–10V Max, 25mA Sinking CurrentPower Supply: 12–24VDCMounting Height: 40 ft. MaxRemote Range: up to 50ftHousing Material: PlasticHumidity Max: Max 95% RHLocation of Use: OutdoorBluetooth Transmit Range: No BluetoothRadio Frequency: PIR infrared, No frequencies are used -
SKU: ESL-11OCC-LV-BR
11OCC-LV-BR • Stand Alone Microwave Occupancy Sensor • Brown
Dimensions: L20.67" x W10.63" x H7.28" -
SKU: ESL-ISS-REM-01
IntelliSense™ Remote Control • For SoloSense™ Sensors
Dimensions: L5.71" x W2.36" x H0.47"Sensor Detection Range: 40 Feet MaxSensor Detection Radius: 360°Dimming Control Output: Class 2, 0–10 VDC, 10mA MaxMounting Height: 18 Feet MaxRemote Range: Max 26 ft (IR)Housing Material: UL 94-5VA PlasticLocation of Use: IndoorBluetooth Transmit Range: 100 Feet MaxRadio Frequency: 2.4GHz ± 75MHzBluetooth Version: 4.2Compliance: UL8750Storage Temperature: -22°F to 185°F -
SKU: ESL-REM-LV02

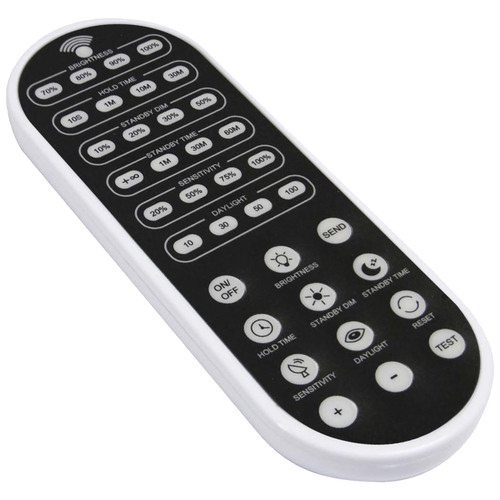

REM LV • Low Voltage Remote Control
Dimensions: L20.67" x W11.42" x H7.28"Remote Range: up to 50 ft (indoor, no backlight) -
SKU: ESL-REM-100

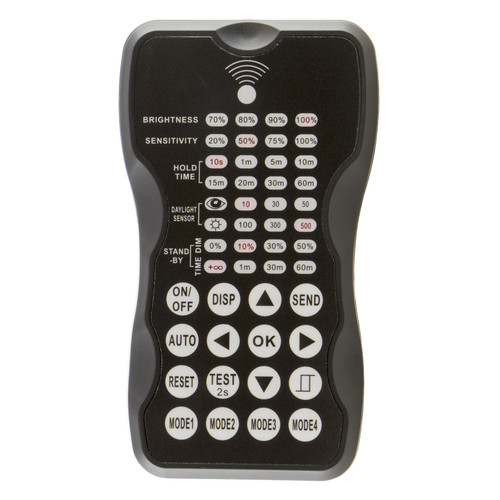

REM100 • Infrared Remote Control
Dimensions: L20.67" x W11.42" x H7.28"Remote Range: Indoor IR — line of sight -
SKU: ESL-WFR-R3-6W-32750-WH
Wafer • 3" Round / 6W / 5CCT
Beam Angle: 120°Selectable Kelvin: 2700K–3000K–3500K–4000K–5000KFinish: WH (White)Dimensions: Ø3.62" x H0.83"CRI: >90Energy Rebate: Energy StarCA Energy Code: Title 24 JA8 -
SKU: ESL-WFR-R4-9W-32750-WH
Wafer • 4" Round / 9W / 5CCT
Beam Angle: 120°Selectable Kelvin: 2700K–3000K–3500K–4000K–5000KFinish: WH (White)Dimensions: Ø4.92" x H0.91"CRI: >90Energy Rebate: Energy StarCA Energy Code: Title 24 JA8 -
SKU: ESL-WFR-R6-12W-32750-WH
Wafer • 6" Round / 12W / 5CCT
Beam Angle: 120°Selectable Kelvin: 2700K–3000K–3500K–4000K–5000KFinish: WH (White)Dimensions: Ø6.89" x H0.91"CRI: >90Energy Rebate: Energy StarCA Energy Code: Title 24 JA8
